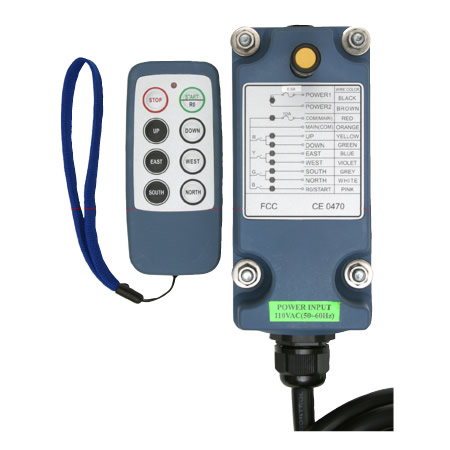

RC-IM-P41, RC-IM-P61, RC-IM-P81
Our very affordable pocket-sized industrial transmitters are special in that they're the some of the smallest available in the market. As a result of their compactness, the user may more easily negotiate load placement with less fatigue, while not compromising quality and versatility. The RC-IM-P Series Radio Control systems present the user with four, six, or eight pushbuttons, respectively, to choose from. All transmitters are 1-step and are perfect for light-duty, mobile, and industrial equipment.
Features
* Industrial grade, durable and robust
* New lightweight (approximately 1/3 lb.) user friendly pocket size
* Advanced RF circuitry design with over 4.1 billion ID codes
* Exceptionally low power consumption. Up to 3 months with 2 AA batteries
* Working temperature range from -49° to +176°F
* Long distance operation, up to 300+ feet
* Designed for high-vibration, heavy-duty mobile and industrial equipment
* Remote ID setting allows for instant maintenance at work site
General Specifications
* Enclosure: IP 65, fiberglass/ABS
* Operating temperature -49° to +176°F
* Relay: 10A/250VAC, 15A/32VDC
* ID code: 32 bit
* Remote ID code setting
* Operating Range up to 300+ feet
* FCC Part 15 Unlicensed Operation
Transmitter and Receiver Specifications
Transmitter
4.72" L x 2.17" W x 1" H
1/3 lbs. (with batteries)
2 AA size alkaline batteries
Other Specifications:
* Low power indicator (LED flashes red)
* Push button jammed detection
* Built in shock resistance
* Output power ? 4mW
* Normal Power Comsumption ? 10mA
* Frequency modulation
Reciever
6.34" L x 2.91" W x 2.05" H
2.43 lbs.
AC: 110V, DC: 12-24V
Other Specifications:
* Sensitivity near -105 dBm
* Shock resistant mounting
|
